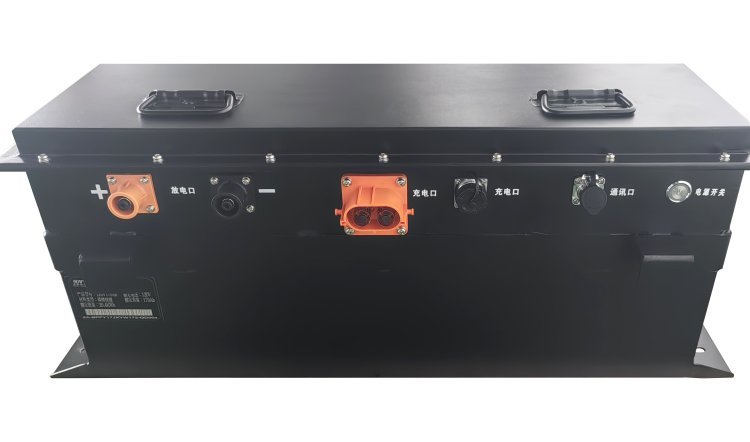

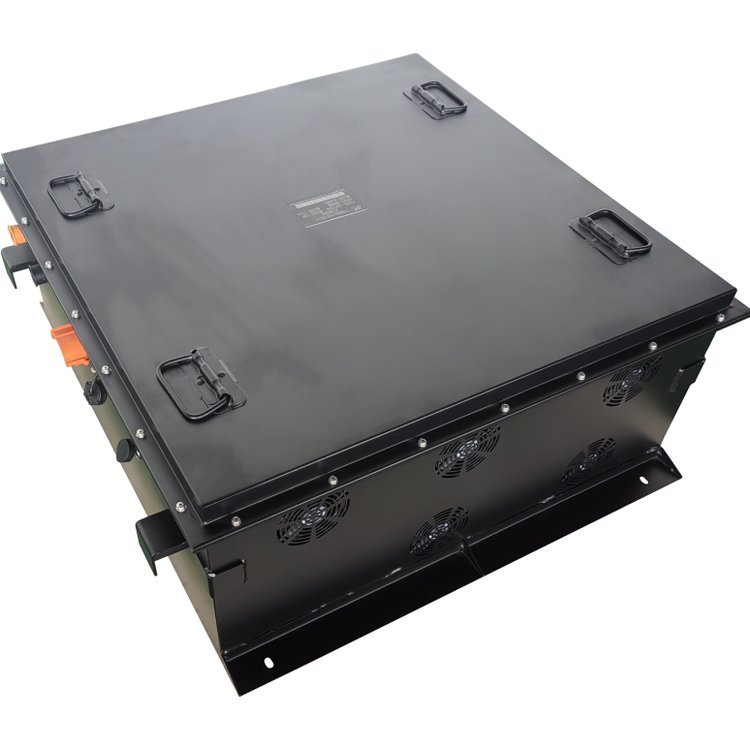

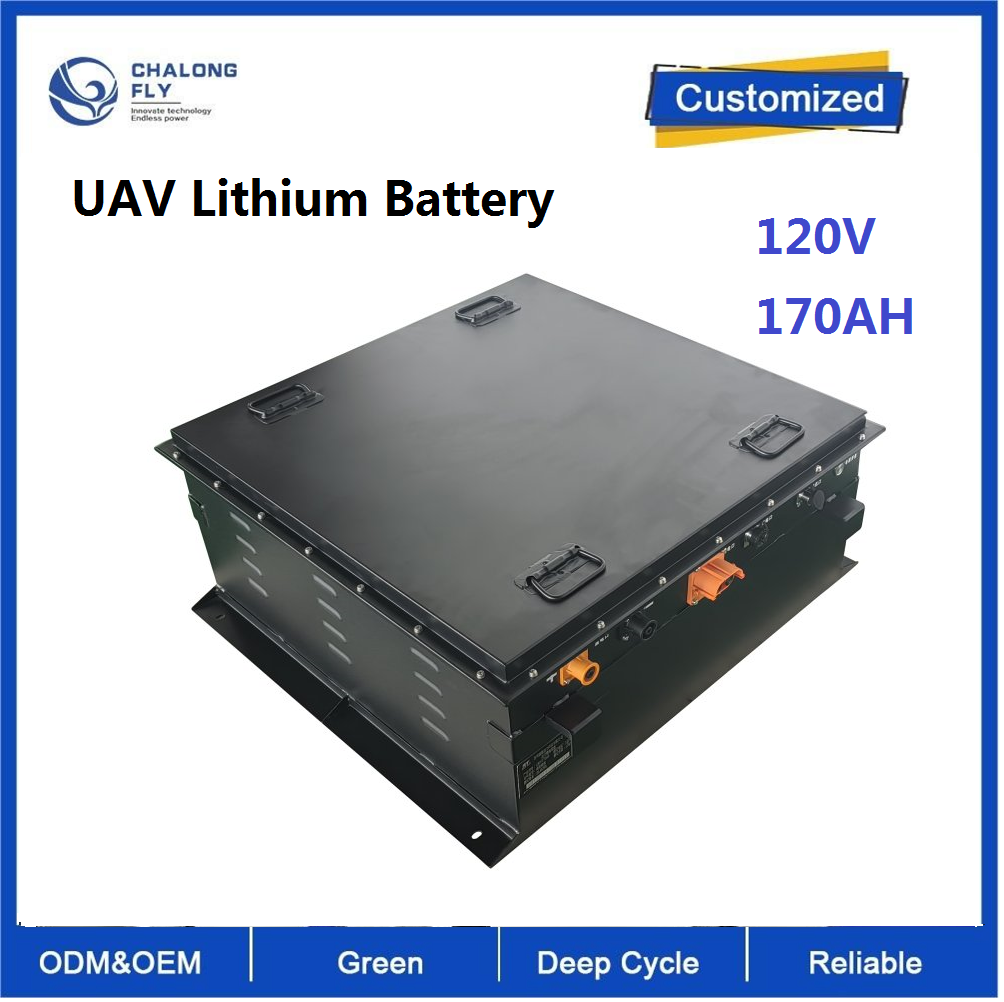

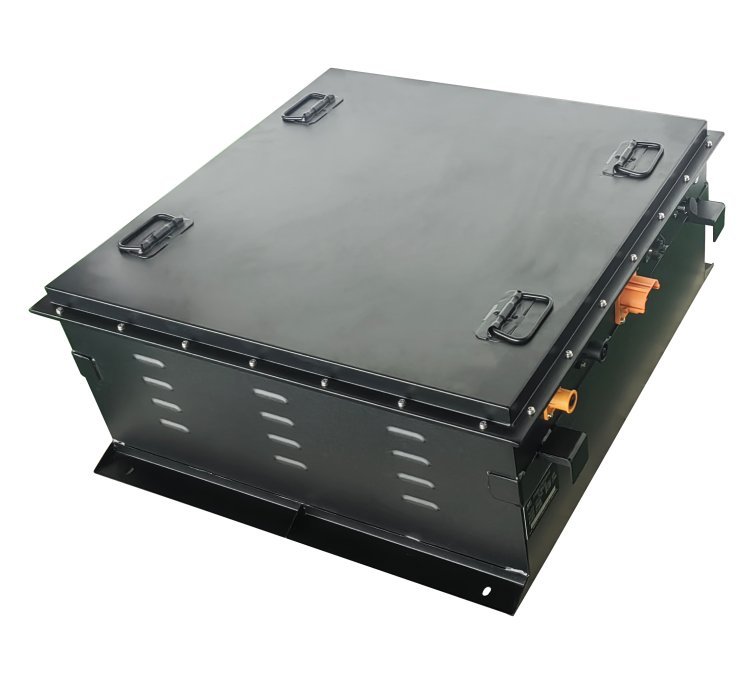

120V 170Ah 3000 Cycles LiFePO4 Battery Pack for Unmanned Vehicles

Descripción de producto

Power Your Unmanned Missions: 120V 170Ah High-Energy Lithium Battery

In the era of autonomous driving, endurance and reliable power define the performance limits of unmanned ground vehicles. Our 120V 170Ah High-Energy Lithium Battery is engineered specifically for advanced UGV platforms. It's not just a power source; it's the strategic core for your fleet's efficiency and future success.

BENIFITS OF OUR LITHIUM BATTERY

Extended Range, Uninterrupted Operations

With a substantial 20.4 kWh energy capacity, it delivers extended runtime for your UGVs. Significantly reduce charging cycles and maximize operational coverage, enhancing productivity in logistics, patrol, agricultural automation, and beyond.

High Power, Superior Performance

The 120V high-voltage platform ensures higher efficiency with lower current loss. It provides instant, robust power to the motor, enabling agile and stable performance even under demanding conditions like steep gradients and heavy payloads.

Intelligent Management & Built-in Safety

Equipped with an advanced Battery Management System (BMS), it offers comprehensive protection against over-charge, over-discharge, over-current, short circuit, and thermal extremes. It ensures unparalleled safety for reliable, unattended operations.

Lightweight Design, Maximized Efficiency

Featuring high-energy-density cells and a lightweight structure, it provides exceptional power while minimizing overall vehicle weight. This directly translates to longer endurance and reduced energy consumption.

How to choose lithium batteries for your vehicles from CLF?

Choosing CLF lithium batteries for your vehicle is a crucial step towards achieving enduring range and superior performance. CLF specializes in providing safe, reliable, and high-energy-density lithium battery solutions. With an intelligent battery management system and robust industrial design, we ensure stable power output under various operating conditions. Whether for logistics UGVs, patrol vehicles, or other automated platforms, CLF offers customizable voltage and capacity configurations tailored to your specific needs — helping you enhance operational efficiency and reduce lifecycle costs. Trusting CLF means empowering your vehicle with a strong and long-lasting "power core."

Technical Parameter for 120V 170Ah Lithium Battery

Model:120V-170Ah

Nominal Voltage: 120V(38S LiFeP04)

Nominal Capacity:170AH

Discharge cut-off voltage: 98.8V(2.8)

Charge cut-off voltage: 136.8V(3.65)

Max charge current: 60A

Continuous max discharge current:100A

Peack current: 350A(1S)

Weight: about 200KG

Housing: Stainless steel,RAL9003

Charging temperature:0℃ 55℃

Discharging temperature :-20℃~60℃

Protection class:IP65

Communication:CANBus

Size: L550*W550*H320MM

APPLICATIONS OF OUR BATTERY

Our high-performance lithium batteries are engineered to power the future of mobility and beyond. They serve as the reliable heart for a wide range of applications, from autonomous logistics vehicles and last-mile delivery robots that streamline the supply chain, to unmanned patrol and security vehicles that ensure continuous area monitoring. In the agricultural sector, they empower automated farming equipment to operate with greater efficiency and lower emissions. Beyond ground vehicles, our robust energy solutions are also ideal for specialized industrial equipment, aerial drones, and marine vessels, providing the sustained power and rugged durability required for demanding missions. Wherever there is a need for intelligent, enduring, and safe power, our batteries are there to drive progress and operational excellence.

Find the Right Batteries to Enhance Your Vehicle's Performance

Not sure which configuration is needed?

Our battery experts will design a power supply solution for you free of charge.
