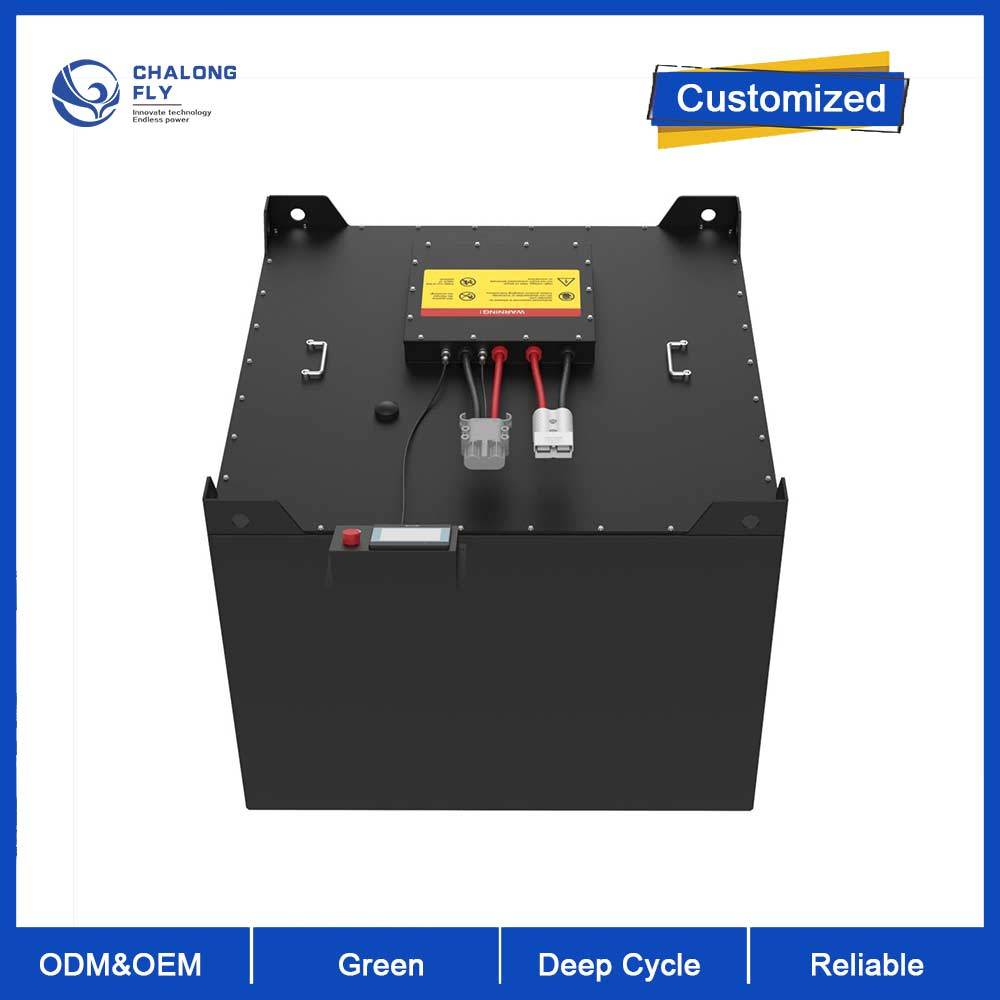

24V 80Ah Forklift Lithium Battery, LiFePO4 Material, Maintenance-Free, High Safety & Long Cycle Life for Industrial Forklifts

Cantidad de orden mínima : 1 unidad Precio : Negociable
Detalles de empaquetado : Estuche de madera y caja de cartón Tiempo de entrega : 7-15 días laborables
Condiciones de pago : T/T Capacidad de la fuente : 10000 unidades por mes
Lugar de origen: Hunan, China Nombre de la marca: Chalong Fly
Certificación: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc Número de modelo: CLFLE195

Información detallada

Número de modelo: batería solar de 48V 100AH 200AH OEM/ODM: Aceptable
Personalizado:
Resaltar:

80Ah Large Capacity Lithium Battery

,

IP67 Protection Marine Lithium Battery

,

Parallel Operation Industrial Energy Storage Battery

Descripción de producto

Product Overview

The 24V 80Ah forklift lithium battery is specially designed for industrial forklifts, adopting high-quality LiFePO4 battery cells. It features fast charging, long cycle life, maintenance-free operation, and excellent safety performance, which can completely replace traditional lead-acid batteries. It effectively solves the pain points of lead-acid batteries such as heavy weight, frequent maintenance, short service life and environmental pollution, and provides stable and efficient power support for forklift operations in warehouses, factories, logistics parks and other scenarios. It conforms to international certification standards and ensures safe and reliable operation under various working conditions.

Technical Parameters
Parameter Name Specification
Nominal Voltage 24V
Nominal Capacity 80Ah
Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Cycle Life ≥3000 cycles (at 100% DOD, 25℃)
Charging Voltage 28.4V - 29.2V (CC/CV Charging Mode)
Charging Time 1-2 hours (0-100% capacity)
Continuous Discharge Current 200A
Peak Discharge Current 250A (7.5s ±2.5s)
Self-Discharge Rate <3% per month (25℃)
Operating Temperature Range Charging: 0℃ - 50℃; Discharging: -20℃ - 55℃
Storage Temperature Range 0℃ - 40℃
Protection Level IP65
Battery Weight 21kg (46lbs)
Dimensions (L*W*H) 290*240*243mm
Certifications CE, UN38.3, UL, IEC, ISO9001
Warranty Period 3 years or 3000 cycles (whichever comes first)
24V 80Ah Forklift Lithium Battery, LiFePO4 Material, Maintenance-Free, High Safety & Long Cycle Life for Industrial Forklifts 0
Highlights
  • Built-in smart BMS, all-round safety protection, stable and reliable.
  • Fast charging, 2–3 hours full charge, support opportunity charging.
  • 3–5 times longer cycle life than lead-acid batteries, lower total cost.
  • Light weight, high energy density, longer working time per charge.
  • Maintenance-free, no need to add water, clean and environmentally friendly.

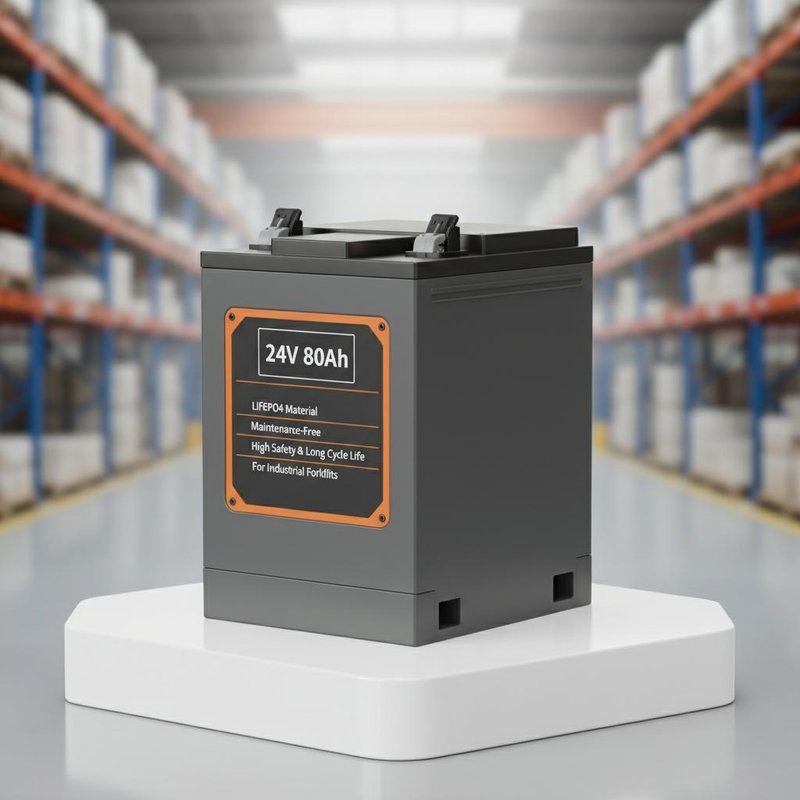

  • Wide temperature adaptation, suitable for warehouse, cold chain, logistics scenarios.24V 80Ah Forklift Lithium Battery, LiFePO4 Material, Maintenance-Free, High Safety & Long Cycle Life for Industrial Forklifts 1
FAQ
Q1: Can this 24V 80Ah lithium battery directly replace the traditional lead-acid battery of forklifts?

A1: Yes, it can be directly replaced without modifying the forklift's power system. It has the same installation size and interface as the corresponding lead-acid battery, which is convenient and quick to replace, and can perfectly match most 24V forklift models on the market. It is a direct replacement for lead-acid batteries and can be put into use immediately after installation.

Q2: What are the advantages of this lithium battery compared with lead-acid batteries?

A2: Compared with lead-acid batteries, it has four core advantages: first, longer service life, with a cycle life of more than 3000 times, which is 2-3 times that of lead-acid batteries; second, maintenance-free, no need to add water, adjust electrolyte or do other daily maintenance, saving labor costs; third, fast charging, which can be fully charged in 1-2 hours, greatly reducing the waiting time for charging and improving work efficiency; fourth, high safety, adopting LiFePO4 material, which has no risk of explosion or fire even in case of puncture, extrusion or short circuit, and is more environmentally friendly without heavy metal pollution.

Q3: What is the service life of this battery under normal use?

A3: Under normal use (1 cycle of charging and discharging per day, 80% discharge depth), the service life can reach 8-10 years, which is far longer than that of lead-acid batteries (3-4 years). The battery still maintains more than 70% of the nominal capacity after 3000 cycles, which can fully meet the long-term use needs of industrial scenarios.

Q4: Can the battery be used normally in low-temperature environments such as cold storage?

A4: Yes, it can. The battery has excellent low-temperature performance, and the discharge capacity can still reach more than 80% of the nominal capacity at -20℃, which is much better than lead-acid batteries (which lose 30-40% capacity below 0℃). It is suitable for low-temperature working environments such as cold storage and northern cold areas, and can ensure stable power output without affecting forklift operation.

Q5: What charging equipment is needed for this lithium battery?

A5: It is recommended to use a special CC/CV (constant current constant voltage) lithium battery charger with a charging voltage of 28.4V-29.2V. Do not use a lead-acid battery charger, which will damage the battery and affect its service life. The charger with matching specifications can ensure safe and efficient charging and extend the battery life.

Q6: What should I pay attention to when storing the battery for a long time?

A6: When storing the battery for a long time (more than 3 months), it is recommended to keep the battery capacity at 40%-60%, store it in a dry, ventilated and cool environment (0℃-40℃), avoid direct sunlight and high-temperature and high-humidity environments, and check the battery voltage every 3 months. If the voltage is lower than 24V, supplement charging in time to prevent over-discharge and damage the battery.
